Camsource®- Camera & Light Source System
The imaging system is the heart of endoscopic spine surgery. A combination of high-resolution image processing and brilliant optical performance are necessary to safely navigate the anatomy of the spine and capture even the smallest structures. To achieve this, joimax® imaging components – from endoscope over camera to monitor – are developed not as individual products, but as a cohesive, integrated system – each with the goal of highest performance and clearest vision. Our latest 4K imaging solutions reveal even smallest details and create an almost spatial visual impression.
joimax® offers complete and integrated solutions for minimally-invasive endoscopic spinal care. The Camsource® Duo expands our existing imaging portfolio offering brilliant imaging.
Excellent Image and Outstanding Illumination
The Camsource® Duo features finer details due to 3-chip sensors capturing more light. Excellent differentiation between varying colors enables clear identification of the anatomical structures.
The new ocular camera head is lightest on market and offers improved handling with its ergonomic shape (especially for biportal and other applications). The integrated LED light source offers outstanding illumination with auto adjustment. This provides excellent image results and prevents overexposure during operation.
Innovative Solutions » Unique Benefits
• Razor-sharp 4K UHD-resolution
• Ultra-long depth of field
• Combined camera and light source
TECHNICAL SPECIFICATIONS
• 4K UHD-resolution 3840 x 2160 pixels
• Latest 3-chip CMOS technology
• Shutter speed 1/60 ~ 1/60000(NTSC), 1/50 ~ 50000(PAL)
• Video output: HDMI 2.0 / 3G-SDI (4K Ultra HD output), DVI
• Long life LED ≥ 50.000 hours, maintenance-free
• Brightness ≥ 580.000 lux
• Automatic temperature detection and control
• Light source dimming

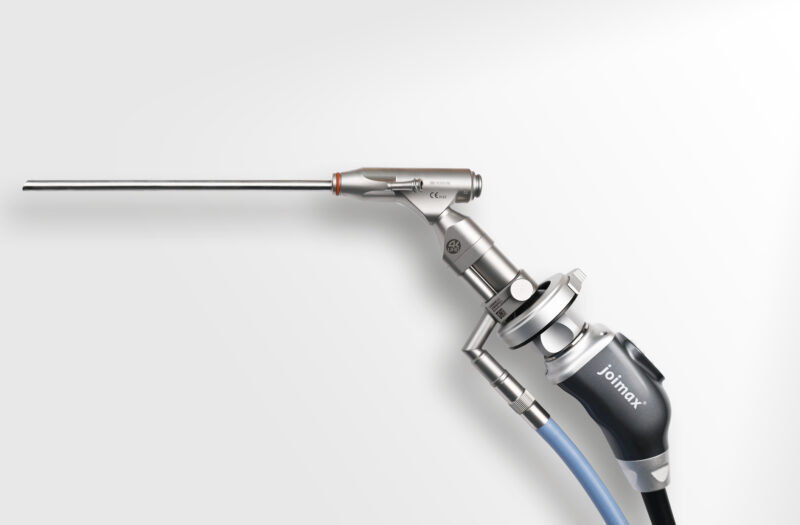

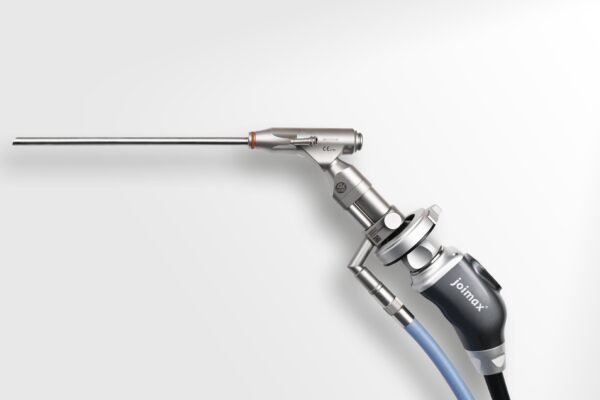

NEW ERGONOMIC CAMERA HEAD
Weight: 150g (+ optic coupler 70g)
Plasma sterilizable
Fixed focus and zoom coupler
Buttons to operate various functions:
• Freeze / White Balance
• Zoom In / Zoom Out
• Dehazing / Anti-red Overflow
• Recording / Snapping
• Scene – / Scene +
Combo optic adapter for connecting a joimax® combo endoscope

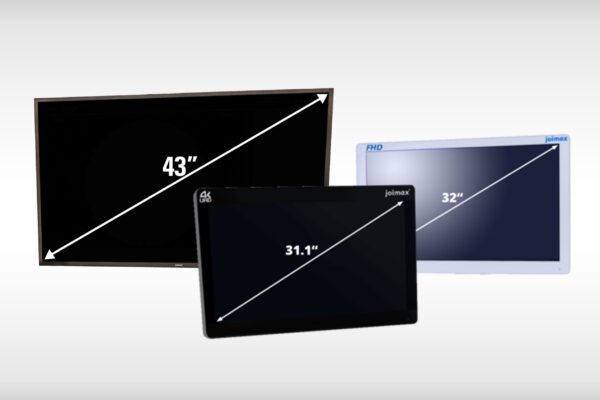

32“ AND 43“ MEDICAL DISPLAYS IN FHD AND 4K UHD
Whether ultrasound, X-ray or endoscopy: The best examination technique is only as good as the display used for visualization. For the new Camsource® Duo, joimax® offers a 32“ and a 43“ 4K display which presents the joimax® Camsource® Duo as a Ultra High Definition System.
The Camsource® LED 4K offers high resolution imaging with the latest CMOS technology to provide brilliant images, especially in combination with joimax® 4K endoscopes and the 4K flat screen monitors. The constantly high color temperature of the new LED light source ensures an ideal and realistic color reproduction of every endoscopic intervention.
The integrated LED light source lasts about 30,000 hours and is maintenance-free. All parameters are set via an intuitive touch panel. In addition, the Camsource® LED 4K is ready for joimax® “Command” integration, the centralized control of the entire system via the Vitegra®. The high-quality glass front with integrated touch panel is easy to operate and to clean.
Perfect images to support endoscopic spine surgery – because illumination, optical system and image processing are ideally matched.
Innovative Solutions » Unique Benefits
- White Balance+ including automatic scaling optimization
- On-screen-display (OSD) with settings of all parameters
- Stepwise zoom function
- Flip (←→) and mirror (↓↑) function
- Adjustment functions of sharpness, contrast,
saturation, color, window and boost - Image capture function
Whether endoscopy, X-ray or ultrasound: the best examination technique can only be as good as the display used for visualization.
Therefore, joimax® offers a wide variety of high resolution LED backlight medical displays in different sizes and resolutions, which meet the highest standards.
All monitors deliver brilliant visualization during surgery, have a smooth overall surface with splash water protected plastic enclosure, and a variety of practical features, such as the buttonless OSD (on-screen display) menu or the picture-in-picture function.
TECHNICAL DETAILS
• TFT-monitors with 32” in Full HD, or 31.1″ & 43“ in 4K UHD, or 55“ 4K UHD on request
• High resolution: 1920 x 1080 pixel (Full HD) 3840x 2160 pixel (4K UHD)
• Wide viewing angle (178°, both, horizontally and vertically)
• Smooth overall surface, EMV tested, splash water protected
• Connections: DVI, HDMI, HD-SDI, RGB, S-Video, Video, Display Port
• Automatic signal recognition
• Picture-in-picture function
• Touch control panel OSD
TWO CAMERA HEAD SYSTEMS
• High resolutions with latest CMOS sensor technology
• Two camera heads available operated
by the same control unit:
› Combo camera head with single-cable technology, compatible with all joimax® combo endoscopes
› Ocular camera head with split camera and light cable for other endoscopes.
• Improved usability by three camera head buttons offering individual programmable remote functions like zoom, flip, snapshot and others
• Reprocessable (Combo camera head: STERRAD; Ocular camera head: Autoclave & STERRAD)

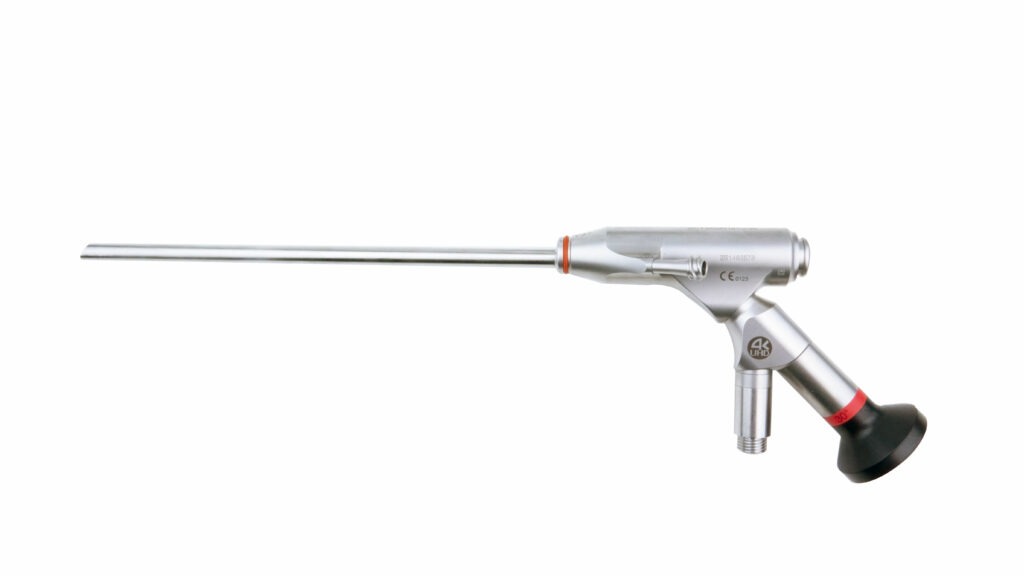

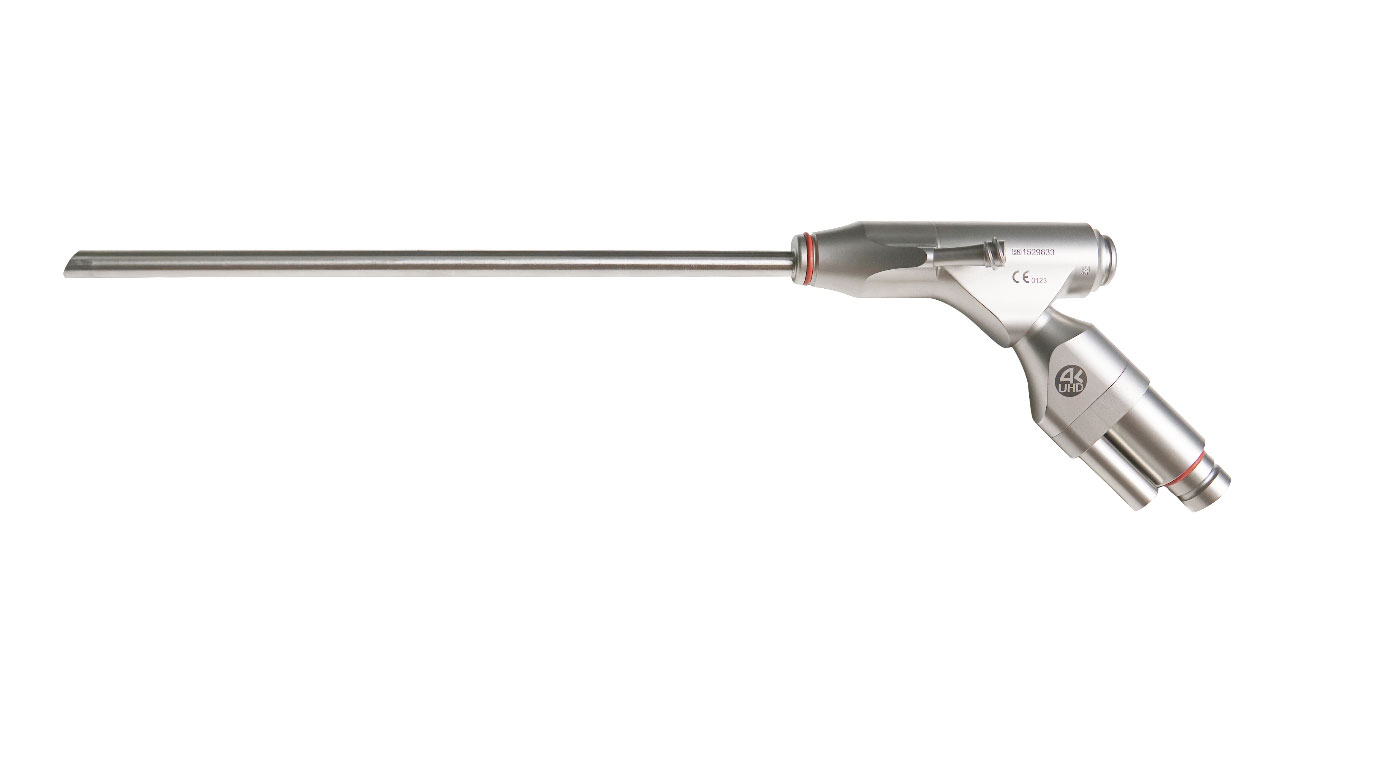

Our most recent endoscopes were designed with the latest camera technology in mind. The optics are optimized for 4K-resolution systems to offer the sharpest picture possible. The improved optical performance enables the user to clearly identify and differentiate even smallest structures.
Together with the 4K Camsource® LED, Camsource® Duo and the 4K UHD Display, joimax® offers a complete optical solution with superior image quality for endoscopic spinal surgery.
With our customers operating multiple cases each day, handling and ergonomics gain more and more importance. New manufacturing technology allow our latest endoscopes to be smaller and even more lightweight – with total weight reduction of up 22%.

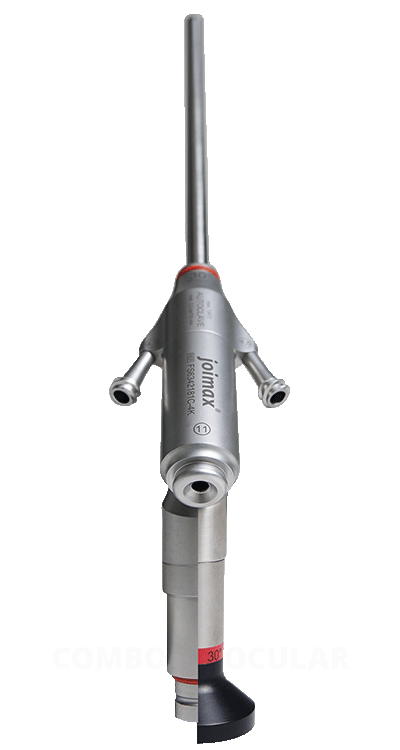

Two Options to Connect a Camera
Combo- / C-Version
User-friendly combined camera cable adapter for camera and light source in single cable technology. To be used with the joimax® Camsource® LED system.
joimax® specializes in complete systems for minimally invasive procedure on the spinal column. Individual surgical systems and methods come with their own unique challenges and bring different requirements with them.
Ocular- / O-Version
Camera and light source with separate cable (two-cable technology; ocular funnel technology). Can be used with most commercially available camera and light source systems.
joimax® specializes in complete systems for minimally invasive procedure on the spinal column. Competitive surgical systems and methods come with their own unique challenges and bring different requirements with them.
Camera and Light Source
Everything from One Source
Camsource® LED and Camsource Duo® integrate best into the all-new navigation endoscopic tower: NAVENTO®.
NAVENTO® is a fully integrated and equipped endoscopic tower including all the joimax® 4th generation devices required for endoscopic access.
It offers the complete package with latest technology and coordinated functionalities of all devices.
This enables the user to master endoscopic spinal surgery in all its diversity and offers growth potential for the expansion of skills and indications.
NAVENTO® knows no boundaries!
Interested in NAVENTO®? Feel free to contact us for more info!
